UCoustic™ 8210 Wall Box & 8250 ‘Mini’ Cab

Model: 12U

Both the 8210 and 8250 with their shorter cabinet footprint (depth 700mm) are ideal for housing smaller noisy items such as, switches, routers and audio-visual equipment.

The 8210 is the very first wall-mounted quiet rackmount cabinet, and the 8250, being a compact mobile floor standing solution, is great for locations with limited space.

With an astonishing noise reduction capability of up to *27.5 dBA, this range of quiet rack cabinets will reduce equipment noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of up to 4 kW.

Being thermostatically controlled, the rear fans maintain sufficient airflow throughout the rack cabinet, providing the required level of thermal dissipation, whilst optimising the level of 'ambient' background noise the cabinet itself generates and minimising power expenditure.

Both quiet racks offer a washable dust-filter option for promoting extended equipment life and reduced maintenance costs.

*Maximum noise reduction level recorded with the aid of acoustically treated blanking plates.

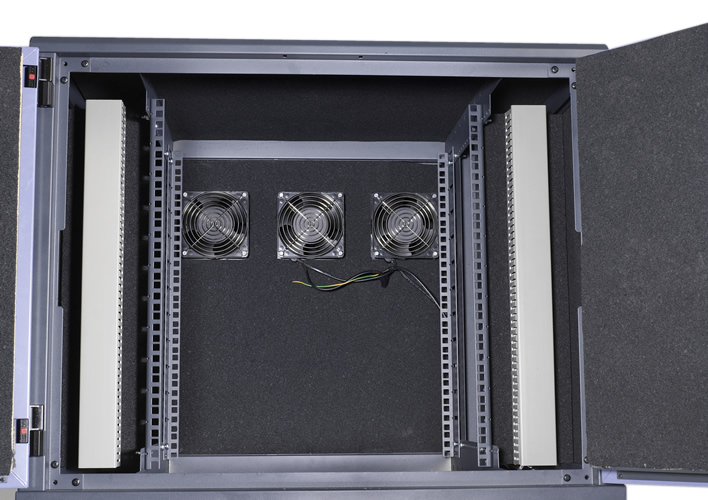

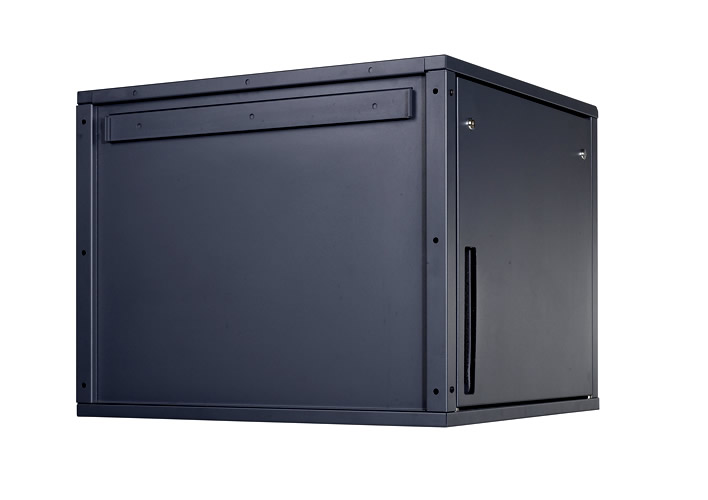

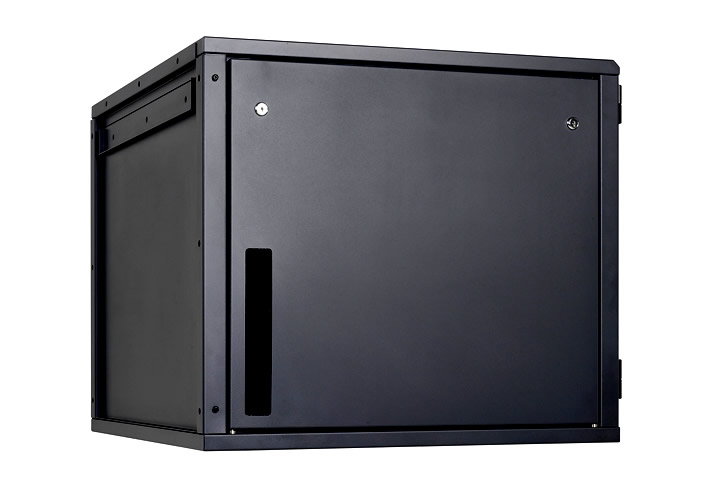

UCoustic 12U Wall Mounted Soundproof IT Cabinet (UC3-1282-AA) Image shows rear view. UCoustic 12U Wall Mounted Soundproof IT Cabinet (UC3-1282-AA) Image shows side view. UCoustic 12U Wall Mounted Soundproof IT Cabinet (UC3-1282-AA) Image shows inside view.

Prices* - Ucoustic Passive 9210 Cabinet Range

*Prices exclude VAT and delivery.

Technical Specifications - UCoustic 8210 Wall Box & 8250 ‘Mini’ Cab

*This dimension allows a minimum 43.2mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.

Can't see Technical Information you require for UCoustic 8210 Wall Box & 8250 ‘Mini’ Cab?

Please contact us on +44 (0)870 190 4092 and we will be happy to help with any technical questions on this range of quiet 19" rackmount cases. Our staff have many years experience in the IT market, and in particular with quiet rackmount cabinets - we have compared and tested every 19" rackmount enclosure that we supply - so it's highly likely that we can help quickly and efficiently.

top

More Quiet Rackmount Cabinets...

UCoustic™ 12u Wall Box & ‘mini’ Cab Features & Benefits Extreme Noise Reduction – up to 27.5 dB(A) Exceptional Thermal Dissipation – up to 4 kW Thermostatically Controlled Cooling – Optimising Thermal Dissipation & Ambient Noise Levels Extra Internal width for orderly cable management & routing Optional Washable Dust Filter on the Enclosure Air Intake - helps protect rackmounted servers and other 19" equipment. 2 Side Cable Entry Options - Sealable (to prevent noise leakage) 8250 is Wall mounted 8210 has load bearing castors

Contact Us Quick Telephone Consultation Further Information Comparative Demo Facilities End Users can Buy Direct - All Major Credit Cards Accepted IT Resellers Welcome

XRackPro2 Range Quick Links Technical Specifications More Quiet Rack Cabinets

Our Comparative Demonstration Room A unique opportunity to compare the industry's top quiet rackmount cabinets side-by-side. Hear for yourself! Contact Us

Our Verdict "Offers the very first, and long awaited, wall mounted quiet rackmount cabinet - ideal for housing noisy switches, routers and audio visual equipment; offering high level thermal cooling capacity with extreme noise reduction. Being thermostatically controlled, the cooling fans ensure optimum cooling performance with minimum impact upon ambient noise levels. There is ample space inside the cabinet for cable routing (something that will be appreciated by anyone involved in the design, building or installation of a system) and the dust-filtering feature will also help reduce maintenance time and costs whilst promoting extended equipment life."

Articles & Links   'Is There Too Much Noise in Your Office?' - "office productivity would increase if workspaces were less noisy." "Prolonged exposure to loud noise can contribute to high blood pressure levels, as well as everyday aggravation, annoyance, and loss of tranquility." [full article]     "Not only can noise be a health problem, it can affect employee effectiveness too." [full article]
