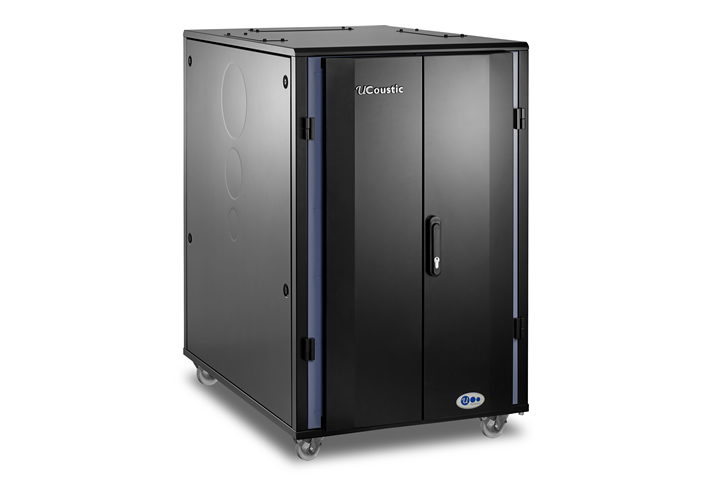

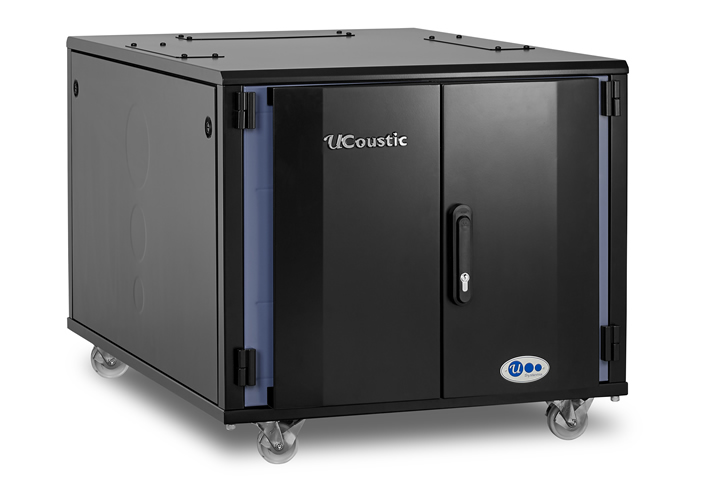

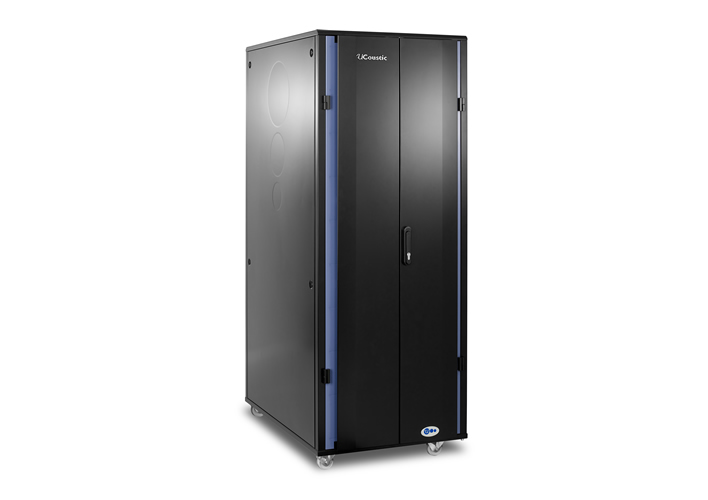

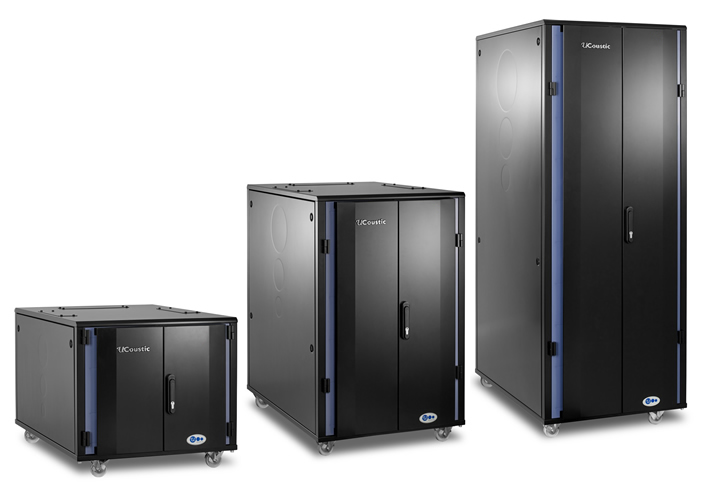

UCoustic™ 9210 range of 19" soundproof rackmount cabinets
Models: 12U, 24U, 42U
The UCoustic 9210 range of quiet rack enclosures has been designed to house noisy 19" rack-mounted equipment, such as servers, networking and audio equipment. By combining ultimate noise reduction with high thermal capacity, this range is a viable alternative to a costly dedicated comms room, by allowing the deployment of servers and network equipment directly in the office environment.
With an astonishing noise reduction capability of up to *28.5 dBA, this range of quiet rack cabinets will reduce equipment noise to a level below that of background noise in an average office without talking, whilst providing a thermal load capacity of 1.75 to 2.75 kW (dependent upon model).
Also, the spacious internal dimensions provide ample room for orderly cable routing throughout the 9210 cabinet, with varied cable entry options to the bottom of the enclosure.
The inclusion of a washable dust-filter, promoting extended equipment life-span and reduced maintenance costs, is optional throughout the 9210 range.
*Maximum noise reduction level recorded with the aid of acoustically treated blanking plates.
Prices* - Ucoustic Passive 9210 Cabinet Range
| Size |
12U |
24U |
42U |
| Product Code |
UC2-1292-AA |
UC2-2492-AA |
UC2-4292-AA |
| MRRP |
£1,182 |
£1,985 |
£2,565 |
*Prices exclude VAT and delivery.
Technical
Specifications - UCoustic Passive 9210 Cabinet Range
| Product Code |
UC2-1292-AA |
UC2-2492-AA |
UC2-4292-AA |
| Useable Height (1U = 44.45mm) |
12U |
24U |
42U |
| External Cabinet Dimensions in mm (Height/Width/Depth)
(includes height of castors)
|
716 x 780 x 1200mm |
1250 x 780 x 1200mm |
2050 x 780 x 1200mm |
| Max. Distance between front & rear mounting profiles |
*750mm |
| Max. Rackmount Unit Depth |
*890mm
(measured from front blanking plate surface to inside of rear door) |
| Cooling Mechanism |
Silent Self-Venting Cabinet Design |
| Assembled Weight without Rackmount Equipment |
109.5 Kg
|
166.5 Kg
|
275 Kg
|
| Max. Ditributed Load (total equipment weight) |
|
| Castors |
Supplied as Standard |
| Cable Access Dimensions |
Min. One Floor cable access point: 100 x 310mm (additional floor cable access points can be fitted upon request) |
| Cabinet Colour |
Grey with Montana Blue trim |
| Cabinet Features |
Heavy Duty Steel Construction
Removable side panels & doors for easy access
Key lockable doors and side panels |
| Dust Ingress Protection |
A Removable and washable filter is available as an optional accessory |
| Delivery |
Delivered fully-assembled and ready to go |
*This dimension allows a minimum 50mm gap between the front blanking plate/equipment surface and the inner front door surface. This is recommended to allow for sufficient air-intake and, therefore, maximum cooling efficiency.
Can't see Technical Information you require for UCoustic Passive Cabinets?
Please contact us on +44 (0)870 190 4092 and we will be happy to help with any technical questions on this range of quiet 19" rackmount cases. Our staff have many years experience in the IT market, and in particular with quiet rackmount cabinets - we have compared and tested every 19" rackmount enclosure that we supply - so it's highly likely that we can help quickly and efficiently.
top
|
|
|
 More
Quiet Rackmount Cabinets...
|
| |
UCoustic™ 9210 'Passive' Features & Benefits
- Extreme Noise Reduction – up to 28.5 dB(A)
- High Thermal Dissipation – up to 2.75 kW
- Extra Internal width for orderly cable management & routing
- Optional Washable Dust Filter on the Enclosure Air Intake - helps protect rackmounted servers and other 19" equipment.
- Various Floor Cable Entry Options - Sealable (to prevent noise leakage)
|
| |
|
Contact
Us
- Quick Telephone Consultation
- Further Information
- Comparative Demo Facilities
- End Users can Buy Direct - All Major Credit Cards Accepted
IT Resellers Welcome
|
| |
XRackPro2 Range
Quick Links
Technical
Specifications
More
Quiet Rack Cabinets
|
| |
Our Comparative Demonstration
Room
A unique opportunity to compare the industry's
top quiet rackmount cabinets side-by-side.
Hear for yourself!
|
| |
Our Verdict
"A price competitive solution offering top level noise reduction levels with excellent cooling capacity. The simple but effective 'silent' self-venting design means that the cabinet generates no ambient background noise - this means that there is no 'floor' to the level of noise reduction that can be achieved.
There is ample space inside the cabinet for cable routing (something that will be appreciated by anyone involved in the design, building or installation of a system) and the dust-filtering feature will also help reduce maintenance time and costs whilst promoting extended equipment life." |
| |
