A Quiet PC ProductAcoustiPack LITE is manufactured
and supplied direct exclusively by
Quiet PC LLP, telephone +44 (0)1653 668000.
Acousti Products Ltd promotes this product for and on behalf of Quiet PC LLP, which has sole responsibility for its manufacture, supply and delivery.
Product Features- Cost-effective solution for HTPCs, SFF and smaller up to standard sized modern PC cases
- Enough materials for a typical case covering the case side panel (door) opposite the motherboard, and case inside roof and floor
- Materials in this pack are only 4mm thick - and may even fit behind the motherboard (without touching PCB components)
- Thoroughly tested to meet UL94-V0 flammability standards for IT equipment
- More effective than alternatives, especially single-layer materials of lower density
- Does not cause internal temperatures in your PC to change significantly, when fitted correctly
- Fitting recommendations included with every kit
Where can I buy the AcoustiPack™ LITE soundproofing materials kit?
EUROPE
UK
(Distributed by QuietPC UK)
Scandinavia
(Distributed by PCB
Distribution)
NORTH AMERICA
USA & Canada
- please visit our US site www.acoustiproducts.us
AcoustiPack™ LITE (APL)

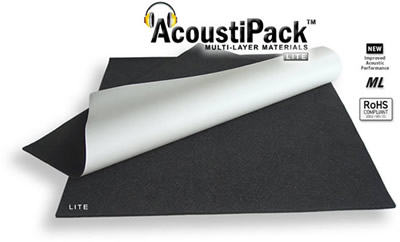

AcoustiPack™ LITE is a cost-effective multi-layer soundproofing materials kit for standard size and small computer cases, including HTPCs and SFF cases. Each pack contains 2 large sheets of sound-proofing materials using our unique 4mm (2-layer) acoustic composite. This material is ideal for fitting within the narrow confines of modern enclosures yet it has superb noise reduction capabilities.See technical details of our materials.
Overview - AcoustiPack™ LITE
Product Code: APL
| What's In the Box? | ||
| 2-Layer Sheets: | 2 (4mm ±10%) |  |
| TOTAL Number of Sheets: | 2 | |
| Product User Instructions: | Included | |
| Pack Dimensions | ||
| Sheet Dimensions: (WxD, ±1%) | 457 x 431mm (18 x 17") | |
| Total Sheet Area: | 0.394m² (4.24ft²) | |
| Other Details | ||
| Flammability Certificate: | UL94-V0 (UKAS Accredited) | |
| RoHS Certified | YES | |
This pack is suitable for:
Suitable for any PC, but best suited for:
- Standard Tower and Desktop Home PCs
- Small NAS and small Home Servers
- Media PCs, HTPCs and SFF cases
- Case Form Factors: ATX, BTX, DTX. MicroATX, FlexATX
Packaging - AcoustiPack™ LITE
The AcoustiPack™ product range have been designed to be shipped to the end-customer without the need for extra packaging. The individual product packaging is not printed on one side, and is strong enough to withstand normal handling during transit. The cardboard has a min recycled content of 35%.
|
|
Fitting Recommendations
A computer case can be fitted from start to finish within about 30-45 minutes depending on the complexity of the case. Fitting recommendations are supplied in the User Instructions with the pack, and are available for download here:
AcoustiPack™ User Instructions (90Kb)
Please take care to read the installation recommendations before installing this product. These materials are installed at the installer's own risk.
Companion Products
You may also like to consider adding AcoustiPack™ EXTRA Foam Blocks (APExtB) to this kit. This will increase the internal surface area of the acoustic materials, and help to absorb extra acoustic energy inside the PC or server case. More details.
If you require an extra sheet of 3-layer 7mm materials, then you may like to order AcoustiPack™ EXTRA Sheet (APExtS). More details.
NOTE: If you think you'll need more materials than in the LITE pack, and you have the space inside your PC enclosure for a 7mm sheet, then AcoustiPack™ ULTIMATE is a more suitable product.
Alternative Products
An alternative pack if you have a larger PC case would be AcoustiPack™ ULTIMATE (APU) incorporating new 3-layered materials for the ultimate in noise reduction.
More details.
