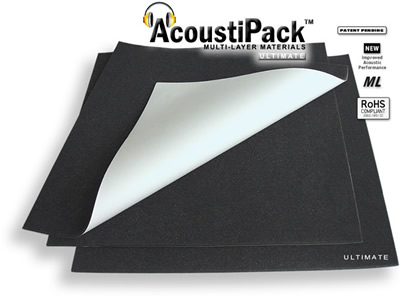

AcoustiPack™ ULTIMATE PC Soundproofing Kit (APU)
AcoustiPack™ ULTIMATE sets a new standard for PC soundproofing material kits, where the maximum noise reduction is required in a limited space. This multi-layer materials kit includes 3 sheets; two 2-layer (4mm thick) and one sheet of our latest generation 3-layer materials, providing superb levels of noise reduction despite the thickness being only 7mm. This soundproofing kit is designed to reduce the noise emanating from noisy PCs with case sizes ranging from standard ATX up to larger E-ATX and pedestal server cases used by gamers, power-users and small business users. See technical details of our materials.
 Tech-REVIEWS.co.uk have awarded the AcoustiPack™ ULTIMATE with 5 stars and their Editors Choice award, recommending; "If you’re after some sound dampening to take away the annoying whirring from case fans, don’t think twice, just buy the AcoustiPack Ultimate – you won’t regret it."
Overview - AcoustiPack™ ULTIMATE
Product Code: APU
| |
|
| What's In the Box? |
| 2-Layer Sheets: |
2 (4mm ±10%) |
 |
 3-Layer Sheets: |
1 (7mm ±10%) |
| TOTAL Number of Sheets: |
3 |
| Product User Instructions: |
Included |
| |
|
| Pack Dimensions |
| Sheet Dimensions: (WxD, ±1%) |
457 x 431mm (18 x 17") |
Total Sheet Area:  |
0.590m² (6.35ft²) |
| |
|
| Other Details |
|
| Flammability Certificate: |
UL94-V0 (UKAS Accredited) |
| RoHS Certified |
YES |
| |
|
|
This pack is suitable for:
Suitable for any PC, but best suited for:
- Large Tower and Desktop PCs
- Gaming PCs, and High-Performance & Other Specialist 'noisy' PCs
- Pedestal Servers, 19" Rackmounted Servers
- 19-inch Networking and Comms IT equipment
- Case Form Factors: E-ATX, ATX, BTX, DTX
|
Packaging - AcoustiPack™ ULTIMATE
The AcoustiPack™ product range have been designed to be shipped to the end-customer without the need for extra packaging. The individual product packaging is not printed on one side, and is strong enough to withstand normal handling during transit. The cardboard has a min recycled content of 35%.
| Individual Product Packaging Information: |
APU x1 |
| |
|
| Pack Weight: |
1.76Kg (3.88lbs) |
| Pack External Dimensions: (WxDxH) |
470 x 445 x 20mm
(18.5 x 17.5 x 0.8") |
| |
|
| Multiple Products Packaging Information: |
APU x8 |
| |
|
| Quantity per Shipping Box: |
8 |
| Shipping Box Weight: |
14.09Kg (31.0lbs) |
| Shipping Box External Dimensions: (WxDxH) |
490 x 460 x 230mm
(19.3 x 18.1 x 9.1") |
| |
|
| Distributor & Reseller Information: |
AcoustiPack™ ULTIMATE |
| |
|
| Product Bar Code: (EAN-13) |
5060087740300 |
|
|
Fitting Recommendations
A computer case can be fitted from start to finish within about 30-45 minutes depending on the complexity of the case. Fitting recommendations are supplied in the User Instructions with the pack, and are available for download here:
 AcoustiPack™ User Instructions (90Kb)
Please take care to read the installation recommendations before installing this product. These materials are installed at the installer's own risk.
|
top
 Rhys "Apollo" of TechREVIEWS takes a look at the AcoustiPack™ ULTIMATE:
"To install the sound dampening, it was fairly simple... The adhesive is incredibly sticky and adheres very well. If you mess up whilst sticking down the acoustic material, you can however remove the AcoustiPack and relocate it several times before is loses its adhesiveness.
"With the AcoutiPack Ultimate installed I was pleasantly surprised by how much it had dampened the noise...
"Taking readings from my CPU's diode (using Intel Thermal Analysis Tool) the idle temps were reported at 32 degrees C, this is about 3 degrees above the temperatures when no sound dampening was applied. To me, this seems like a very good temperature - a small price to pay for a drop in noise levels...
"If you're after some sound dampening to take away the annoying whirring from case fans, don't think twice, just buy the AcoustiPack Ultimate - you won't regret it."
 [read
the full review]
We are actively looking for quality, well-respected IT review sites and magazines to test and give their honest opinion about our new and improved soundproofing materials. Please let us know if you are interested in reviewing these products or you know of a high-quality PC review magazine or website that may be willing to give these products a thorough review. Please contact us via our website here to request samples for review. |
|
|
|
Quick Links
Fitting Recommendations
Where to Buy
FAQs
Reviews
About Our NEW Multi-Layer Materials
More About PC Noise
|
| |
Features & Benefits
- Arguably the most effective PC soundproofing materials on the market - now with improved multi-layer acoustic performance, improved flammability standards and improved aesthetics
- A complete cost-effective solution for noisy large/medium sized PCs or servers
- Different thickness materials in this pack allow the flexibility to cover internal case sides with thicker materials where space allows
- 2 large sheets of 4mm (2-layer), and 1 large sheet of 7mm (3-Layer)
- Thoroughly tested to meet UL94-V0 flammability standards for IT equipment
- Does not caused internal temperatures in your PC case to change significantly, when fitted correctly
- Materials do not shed dust, remain flexible and do not tear easily
- Dense but flexible soundproofing materials - easy to cut and shape
- For ease of fitting, the self-adhesive can be re-applied if a mistake is made positioning them at first
- Fitting recommendations included with every kit
|
| |
Companion Products
You may also like to consider adding AcoustiPack™ EXTRA Foam Blocks (APExtB) to this kit. This will increase the internal surface area of the acoustic materials, and help to absorb extra acoustic energy inside the PC or server case. More details.
If you require an extra sheet of 3-layer 7mm materials, then you don't need to order two packs, you can order AcoustiPack™ EXTRA Sheet (APExtS). More details.
|
| |
Availability
Where can I buy the AcoustiPack™ ULTIMATE soundproofing materials kit?
UK  (Distributed by QuietPC UK)
Scandinavia     (Distributed by PCB
Distribution)
USA & Canada   - please visit our US site www.acoustiproducts.us
|
