Solutions for Manufacturers

AcoustiPack Deluxe soundproofing pack is RoHS compliant - click for more details.AcoustiPack - Ultimate Noise Reduction. Image shows AcoustiPack logo.
 Deluxe (v2)

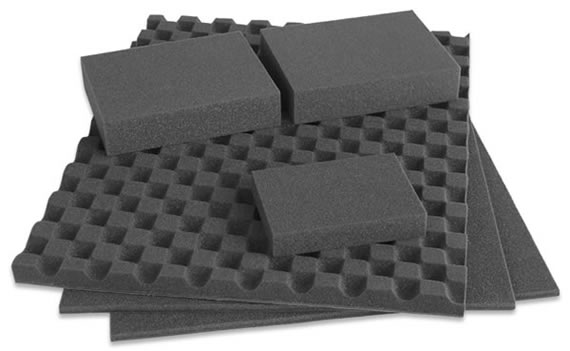

AcoustiPack Deluxe (v2) - pictured here featuring the AcoustiContour low-reflection anechoic surface (shown on the uppermost large sheet of acoustic composite). The Deluxe pack also contains additional acoustic foam blocks (shown here on top) for fitting inside appropriate empty drive bays - where they help to absorb further noise and to reduce the internal air space volume inside a case. The pack also includes two generously sized sheets of our unique acoustic composite material. In combination these materials will result in a significant lowering of computer noise - even in larger computer cases.

The newly revised Deluxe version contains a set of 3 large self-adhesive Acoustic Composite sheets providing maximum soundproofing. The pack dimensions are so generous this product will line the inside of a large tower or desktop case - making this product ideal for larger-volume computer cases or for users who require the very highest standard of noise insulation. The two different thicknesses of acoustic material offer a greater degree of flexibility and fitting customisation.

AcoustiContour Acoustic Surface Profile - this new and unique anechoic surface improves absorption for high-angle incidence sound waves (in this application, acoustic noise from computer components). The contoured surface has been developed to optimise acoustic performance whilst minimising volume and maintaining low flammability standards. With an approx. 45% increase in surface area, the low-reflection properties of the acoustic foam are still further improved.AcoustiContour Surface Close-Up - image of the unique new anechoic surface. The acoustic foam surface area is increased by approx. 45%. The larger the surface area, the more effective the acoustic foam becomes at absorbing noise energy due to lower reflection and refraction of sound waves.

The Deluxe pack contains a thicker Acoustic Composite sheet featuring our unique AcoustiContour™ anechoic surface. This is ideally suited for case side doors opposite large sources of noise, like a CPU fan. The Deluxe pack also contains 3 additional pre-cut rectangular blocks of Acoustic Foam for insertion into any suitable spare 3½ & 5¼-inch drive bays.

AcoustiContour™ is an advanced acoustic surface designed to minimise sound wave reflection by increasing the surface area by approx. 45%.

Warning! Please take care to read the installation recommendations before installing
this product. These materials are installed at the installer's own risk.

topTop

Reviews & Feedback

AcoustiPack Deluxe Review "So, it comes down to one simple question: Is the price worth what you get? The answer is simply Yes!"

"Only a very small handful of PC’s today are deliberately manufactured to be generally quiet, including under the most extreme circumstances. With thousands of manufacturers and various specifications, it is nearly impossible to create a seamlessly quiet PC, or so one thought. The advantage of AcoustiPack™ Deluxe is primarily the fact that it virtually replaces all the other noise-reduction products on market by completely eliminating any emitted sounds from your case… period. Such an approach puts many other similar products in the useless category and raises AcoustiPack™ Deluxe to a level of performance I only hope QuietPC.com continues throughout their future line of products.
Pros: Highly effective, Abundance of materials; Cons: Price, Potential airflow interruption and rising of in-case temperatures if handled incorrectly" Awarded '8.5/10 Stars' by TweakTown .com (Canada) Awarded 8.5 Stars in the TweakTown ReviewExternal Link[full review]

By Julian Shapiro - TweakTown.com

AcoustiPack Deluxe Review "...represents a thorough and effective approach to dampening materials for computer cases."

"The Deluxe AcoustiPack™ by Acousti Products represents a thorough and effective approach to dampening materials for computer cases... Whether you consider AcoustiPack™ damping a necessity or a luxury really depends on the approach you take to PC quieting, and on your noise standards. Regardless, Acousti Products have clearly come up with a useful tool to add to the PC silencer's toolbox." Awarded 'Recommended' Status External Link[full review]

By Mike Chin - SilentPCReview.com

AcoustiPack Deluxe Review "Well designed and practical product, very noticeable difference with product installed."

"Well it is a load of foam and I have to admit I did have reservations about the point of using this product in the beginning, however I would highly recommend this product to the overclocker / cooler and for lighter system users maybe the Standard pack as this foam 'kills' noise. It's defiantly worth the £40 and works a treat. It's surprising how much quieter the system is without the previously unnoticed vibrations and the humming of the fans this really does dampen sound very well." Awarded a 4-Star Rating: 4 Stars for the PCHardware Review External Link[full review]

By PCHardware.co.uk - PCHardware.co.uk

AcoustiPack Deluxe Review"Fed up with the racket coming out of your PC? Put a self-adhesive sock in its mouth and shut it up for good"

"...The process of fitting the AcoustiPack Deluxe into our test mini-tower took about 30 minutes and, subjectively, it seemed to deaden the sound down to about half it's previous level. If you fit whisper-quiet fans as well, your PC should be inaudible. When measuring the processor temperature via the BIOS display, the padding didn't make it run any hotter, even after a few hours use..."

PC Plus Magazine (UK) May 2003 Issue #202 - PCPlus (UK)

AcoustiPack Deluxe Review "I was surprised how much difference it made - a MUST buy."

"This is probably the most expensive 'part' I bought. Basically, you cover the inside of your case with this stuff and it dampens the sound. This is amazing - I thought it would not make a big difference, but I was surprised how much difference it made - a MUST buy." External Link[full review]

'Shut Up PC' by Julian Wiegmann - overclockers.com


AcoustiPack Deluxe Customer Feedback "After upgrading my computer with one of the new GForce FX cards, my system more sounded like a vacuum cleaner than a computer. The noise made by the 2 Intel CPU fans, the 3 case fans & the fan on the graphics cards was terrible. It was almost impossible to keep the computer powered on in the living room if you didn't use it because of all the noise.

"My first trial were sound damping panels bought in a local handyman shop. Even though it were quit tick panels, the noise reduction was not very significant. Then I came across the site of Acousti Products and later on QuietPC.com when looking for case isolation. I did buy a new case for my computer, a Chieftec Midi-tower, threw away the old case isolation from the handyman store and the old case/CPU fans and installed the New AcoustiPack™ Deluxe v2 & 3 quiet case fans & 2 new Arial CPU fans, all bought at QuietPC.com.

"At first, I was quiet skeptical, was it worth all the money? After installing the materials into my case, I was most satisfied. The noise reduction was very significant, even though I had my doubts when installing the AcoustiPack™ Deluxe carpets since the carpets where very thick. Air circulation in the case was not bothered at all, my Dual P3 system even ran cooler than before.

"The noise reduction was so significant that I was able to move my computer back to the living room. I'm using the system now for watching Internet Video - where as before this was impossible because of all the noise. I think the AcoustiPack™ Deluxe carpets & the quiet fans from QuietPC.com have reduced the sound emitted by the system by 75% and are worth their money. If you want to quiet computer, you won't regret upgrading your system with the AcoustiPack™ Deluxe and some quiet case/CPU fans."

Nico Vanden Eynde, Belgium

"The difference is incredible. I think I'll be ordering a power supply as that is the only noise I can now hear. What can I say? Other than WOW! Fantastic products. I'll recommend them whenever I get the chance." Roger - West Yorkshire, UK

"After a couple of hours installing the kit... it really makes a difference. I wasn't expecting such good insulation to be sincere, I'm impressed." Josep - Barcelona, Spain

"I've distributed [AcoustiPack™] Deluxe pack something like you've suggested. But I done it for Chieftec Dragon DX-01GND case because I couldn't buy [the Antec] Sonata :( It fits well in Chieftec :) Now I can hear all music I listen [to] :) Thanks again." Alexander Okseyuk - Ukraine

"I don't think I'll ever build another pc without using the AcoustiPack Deluxe damping material!" Paul Brengle, California - USA

"This package provides almost everything you need to fully isolate the interior from the exterior...the acoustic benefits in my case were quite drastic." Andy, UK

"Love this product. Helps keep the noise of my hard drives down and makes my fans unnoticeable." Andre, Canada

"I bought the AP Deluxe about 2 years ago and am still using it in my main PC. I love the product. Keep up the good work." Alex, USA

top



Features & Benefits

  • Arguably the most effective on the market
  • Effective dual-density composition
  • Dense but flexible - easy to cut and shape
  • Comprehensive fitting recommendations
  • Thoroughly tested to meet flammability standards


Technical Specifications

Pack Contents

  • 2 x Acoustic Composite sheets - 7mm nominal thickness (2mm nominal Acoustic Barrier Mass and 5mm nominal Acoustic Foam). These sheets are compressible down to approx. 3mm
  • 1 x Acoustic Composite sheet - 17mm nominal thickness (2mm nominal Acousti Barrier Mass and 15mm nominal Acoustic Foam) also featuring the AcoustiContour™ anechoic surface
  • 2 x 5¼ inch drive bay Acoustic Foam blocks
  • 1 x 3½ inch drive bay Acoustic Foam block

Other Specifications

  • Sheet Dimensions: 495 x 395mm
  • Pack Surface Area: (excluding the 3 extra blocks) approx. 6,745cm²
  • Pack Weight: approx. 3.0Kg

Fitting Recommendations

A computer case can be fitted from start to finish within about 30-45 minutes depending on complexity.

Click to view PDF Fitting Recommendations v1.2 54Kb
